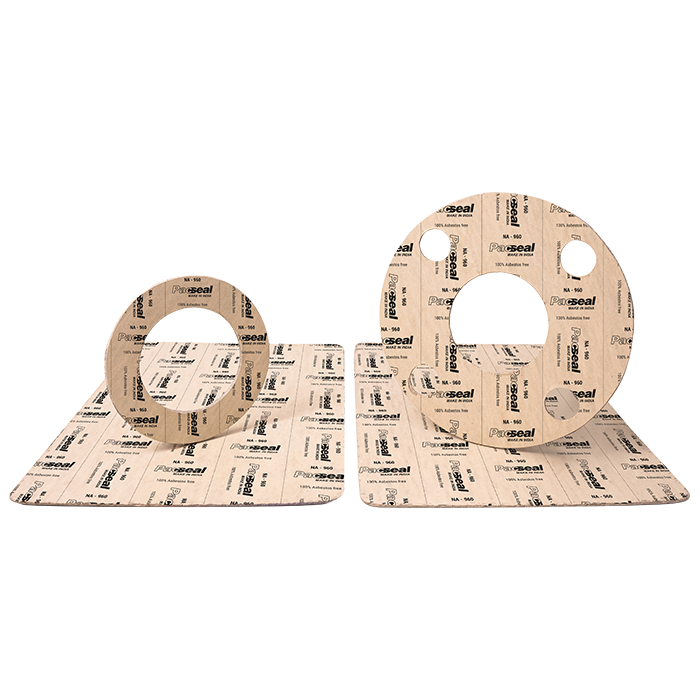

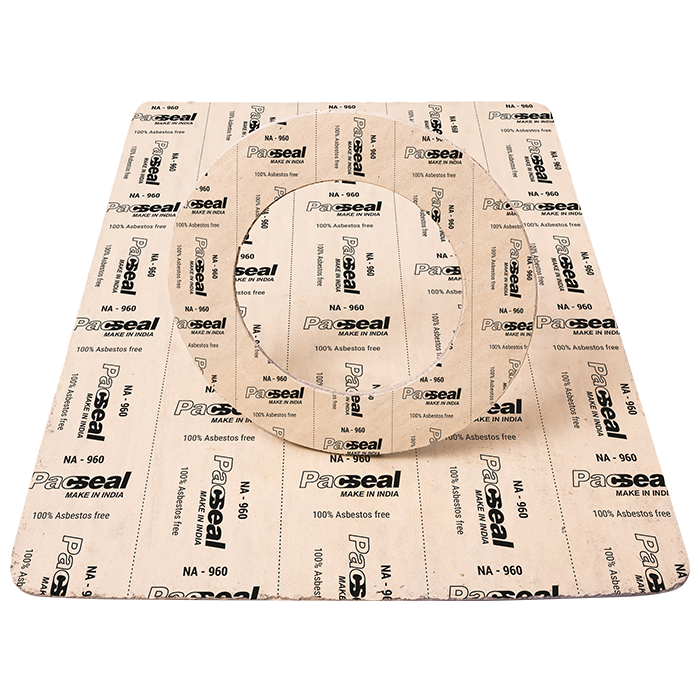

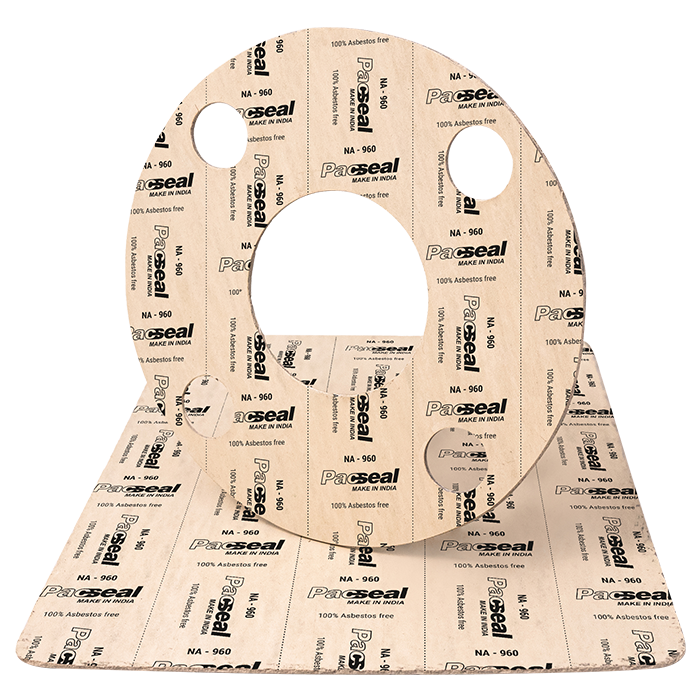

PACSEAL NA 960
A top quality acid resistant compressed synthetic Aramid fibre
jointing sheet bonded with special binders.
Service conditions:
Acid resistant grade. Recommended for use
against hot, concentrated Organic/inorganic/mineral acids.
Acid resistant grade. Recommended for use
against hot, concentrated Organic/inorganic/mineral acids.
| Max. Operating Pressure: | 150 bars |
| Max. Peak Temperature: | 250°C |
| Max. Continuous Temperature: | 210°C |
| Density: | 1.70 – 2.00 g/cm3 |
| Tensile Strength (Across Grain): | 15 MPa (ASTM F 152) |
| Compressibility: | 8-12 % (ASTM F 36) |
| Residual Stress: | 25 MPa (BS 7531) |
| Gas Permeability: | <0.1 cc/Min (BS 7531) |
| Recovery: | ≥ 50 % (ASTM F 3) |
| Water Absorption: | ≤ 5 % (BS 7531) |
| Sealability Against Nitrogen: | ≤ 35 % |
| ASTM Oil No. 3 |
| Thickness Increase % = ≤ 08 |
| Mass Increase %= ≤ 08 |
| Fuel B |
| Thickness Increase % = ≤ 08 |
| Mass Increase %= ≤ 08 |
Note: Antistick coating are also available on request.
